产品描述Product description
◆JB18系列是一-款专用型的按钮开关，特别适用于高额定值的直流电动工具和园林工具，如：直流斜切锯、直流割草机、直流扫雪机、直流电链锯等 。
◆JB18 series are special type push button switches, special for High Rated DC Power-tools and Power Gardening Tools, such as: Cordless Miter Saws, Cordless Electric Lawnmowers, Cordless Electric Snow Sweepers, Cordless Electric Chain Saws, etc.
产品特征Features
◆可选带以下功效 Optional with the function as follows:
→单极�？� Single Pole Normally Open (SPNO)
→一极�？�, 另一极常闭 One Pole Normally Open, the other Normally Close
技术数据Technical data
→机械耐久寿命 Mechanical life endurance≥5E4/1E5
→电气耐久寿命 Electrical life endurance≥1E4/5E4
→最大攻击电流 Max. Inrush current at 250V96A
→最大攻击电流 Max. Inrush current at 125V120A
→接触电阻 Contact resistance≤30m Ohm
→绝缘电阻 Insulation resistance≥7M Ohm
→基本介电强度 Dielectric strength of function1500V
→增强介电强度 Dielectric strength of reinforced3000V
→情况温度 Ambient temperature0°C~55°C
→阻燃品级 FlammabilityUL 94V-0
→防护品级 Protection typeIP40
→适用于II类防护器具 Suitable for appliances of protection class II

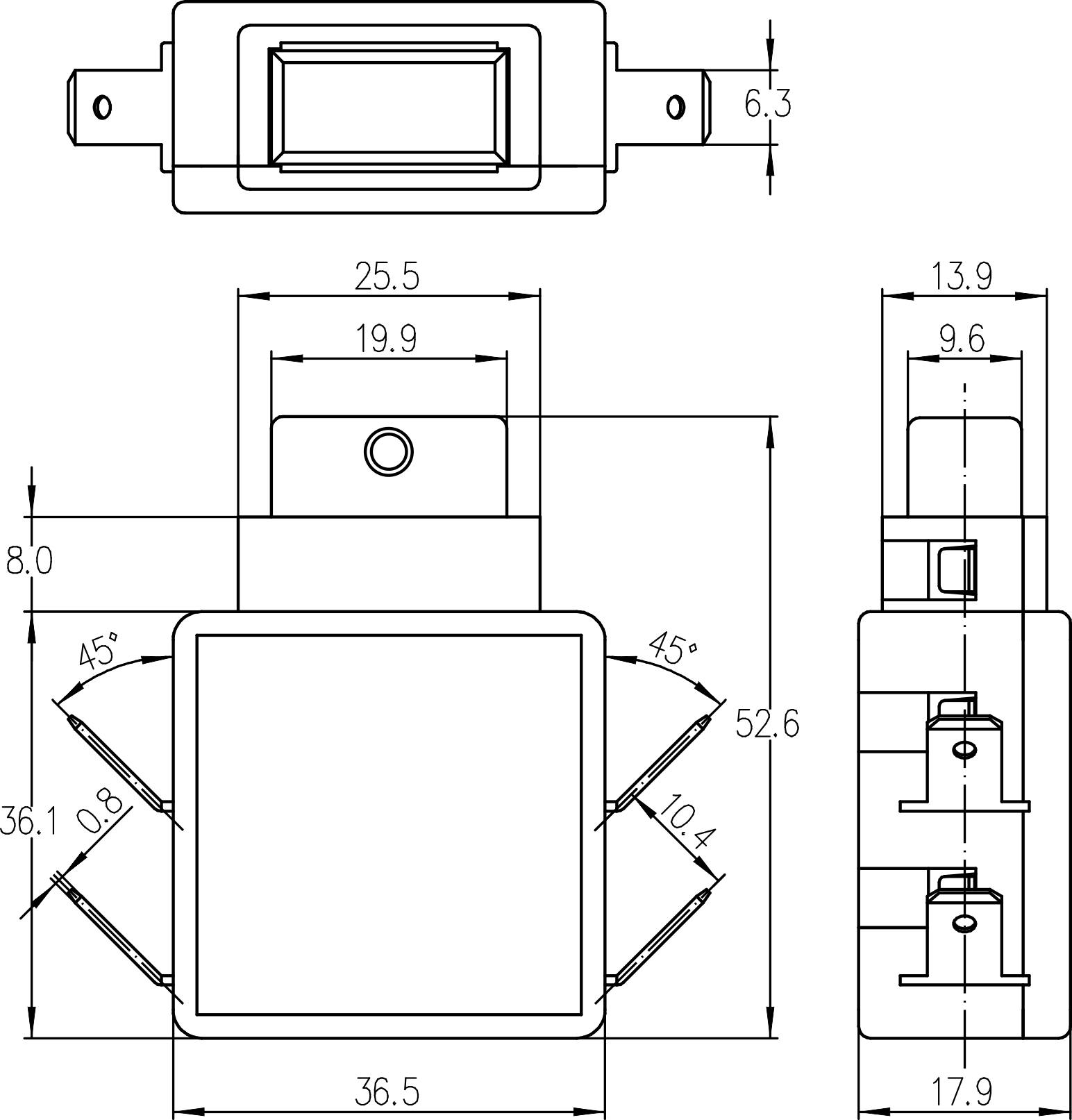

端子类型Terminals
◆输入端/输出端 Input side/Output side:
→插片端子 Plug-in terminals 6.3×0.8mm
★本产品荣获实用新型专利，专利号：ZL201821136304.0
★Utility Model patented with the no. is ZL201821136304.0
电气参数和认证 Electric Rating and Certification
