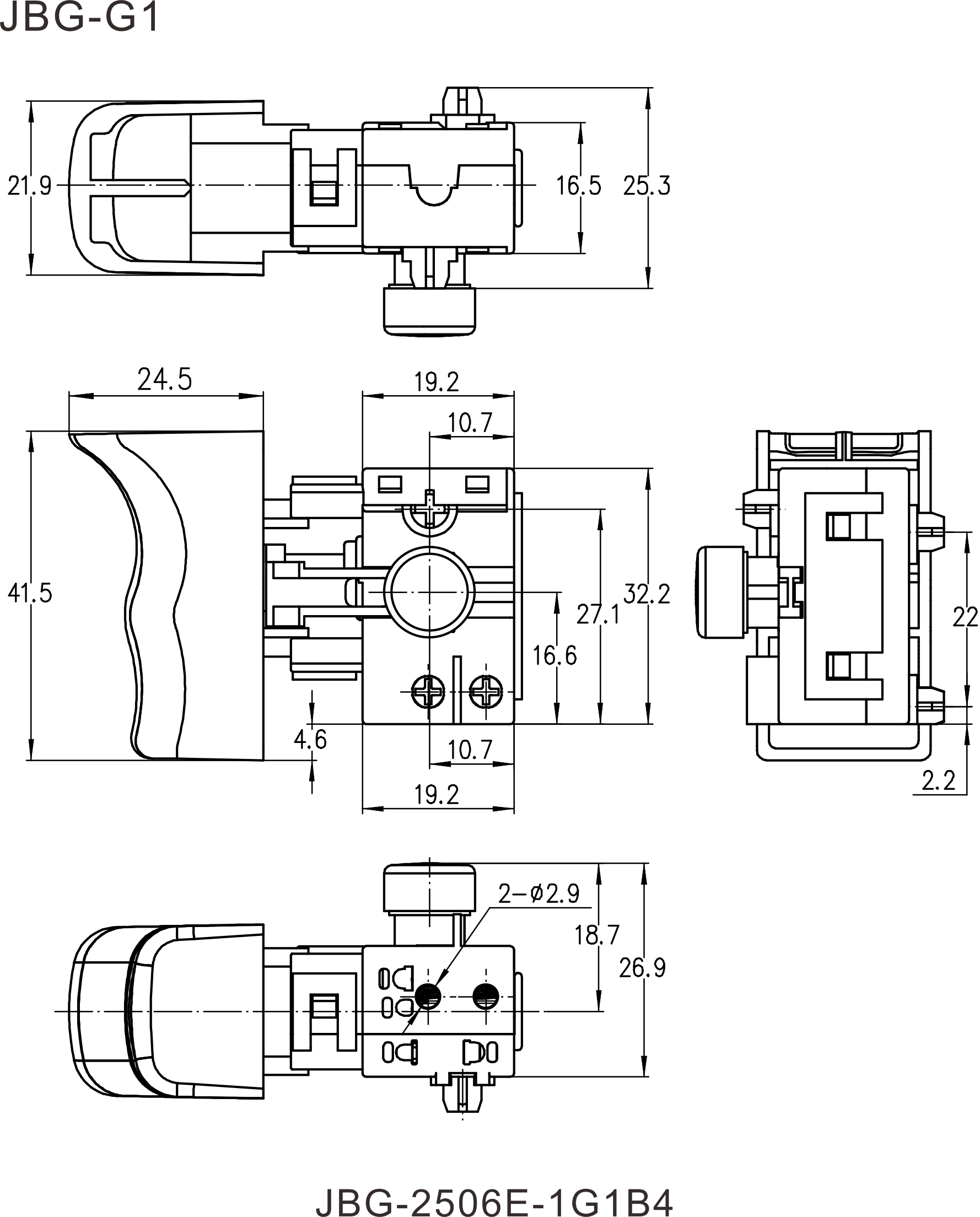

JBG-G1

JBG迷你型防尘交流扳机调速开关

JBG series Mini-type (Dustproof) AC Variable Speed Trigger Switches

产品描述Product description

◆JBG系列是一款迷你型的专用扳机电子调速开关，集成防尘功效，体型小巧，可使机械手柄越发纤细、广泛应用于种种手持式电动工具，如：电钻、攻击钻、电锤、曲线锯、往复锯、马刀锯、搅拌器、抛光机宁静板砂光机等。扳机、锁钮可凭据客户要求进行定制。
◆JBG?series are one mini-type variable speed trigger switches,?integrated dustproof,?with compact size, the handle of tools can be designed to more fine. For popular used in portable power-tools such as: Drills, Impact Drills, Rotary Hammers, Jig Saws, Reciprocating Saws, Sabre Saws, Electric Mixers, Polishers, Orbit Sanders, etc.

产品特征Features

◆可选带以下功效 Optional with following function:
→全波调速 Full-wave speed control
→半波调速 Half-wave speed control
→On-Off通断功效 On-Off version
◆可选带以下锁定类型 Optional with following lock types:
→无锁 No Lock
→闭合锁定 Lock-on

技术数据Technical data

→机械耐久寿命 Mechanical life endurance≥1E5
→电气耐久寿命 Electrical life endurance≥5E4
→最大攻击电流 Max.Inrush current at 250V48A
→最大攻击电流 Max.Inrush current at 127V60A
→接触电阻 Contact resistance≤30m Ohm
→绝缘电阻 Insulation resistance≥7M Ohm
→基本介电强度 Dielectric strength of function1500V
→增强介电强度 Dielectric strength of reinforced3000V
→情况温度 Ambient temperature0°C~55°C
→阻燃品级 FlammabilityUL 94V-0
→防护品级 Protection typeIP40
→开关内部电子部分在相应使用中一并做过相关测试，本开关适合做二类器具开关使用.
→The electronics in the switches are to be tested together with the corresponding appliance, the switches are suitable for appliance of class II.

端子类型Terminals

◆输入端 Input side:
→接线柱端子孔径=3mm  Pillar terminals φ =3mm
◆输出端 Output side:
→插入式端子可插入沾锡导线,带插片端子导线或铜包头导线
→Push-in terminals for soldered strands, strands with end claws
◆换向盒端 Reversing Box side:
→插片端子 Plug-in terminal 2.8X0.8mm

★ 本产品荣获实用新型专利，专利号：ZL201920483843.X

★ Utility Model patented with no. is ZL201920483843.X

电气参数和认证 Electric Rating and Certification

订货信息Ordering Information
