产品描述Product description
◆DSB系列是一款专用型的直流信号扳机开关，集成防尘功效和机械刹车接点，适用于种种直流充电式电动工具，如：充电式电钻、充电式电锤、充电式螺丝起子、充电式攻击扳手等。特殊设计的外形可以和线路板直接连接，而不需要外接导线。
◆DSB?series are one special type DC signal trigger switches, integrated dustproof?and?me chanical brake contact, specially for used in DC power-tools such as: Cordless Drills, Cordless Screw Drivers, Cordless Impact Wrenches, etc.?With special design for assembly with PCB, needn't any wires.

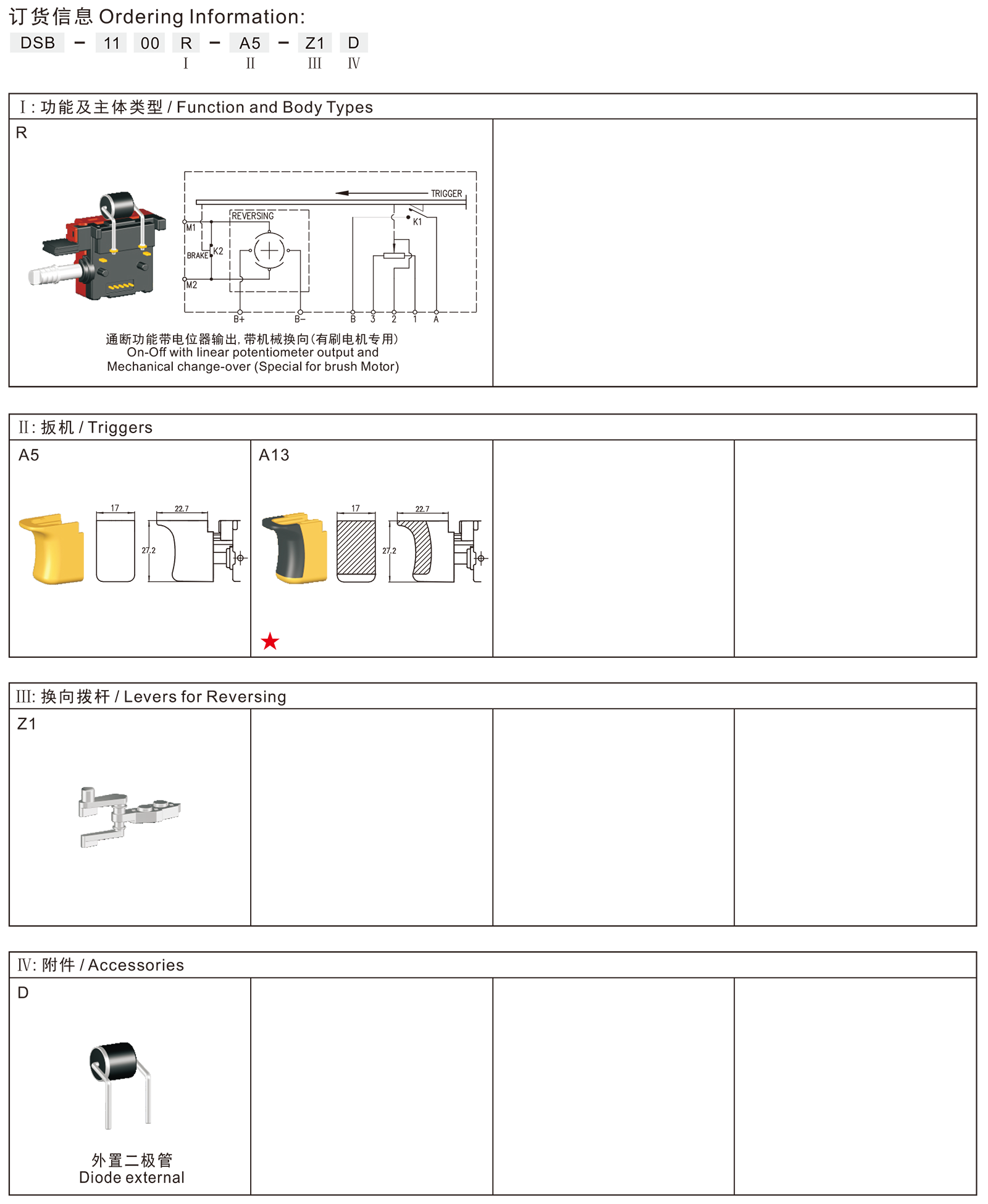

产品特征Features
◆本开关结构紧凑，可选带以下功效或附件：
→信号通断带电位器输出功效
→机械刹车接点
→外置二极管
→带软胶扳机
◆The switches combine compact size, optional with the function or accessories as follows:
→Signal On-off version with linear potentiometer
→Mechanical Brake Contact
→With Diode external
→Trigger covered with rubber (overmolding)
技术数据Technical data
→机械耐久寿命 Mechanical life endurance≥1E5
→电气耐久寿命 Electrical life endurance≥5E4
→最大电流 Max. current at 42Vd.c0.1A
→接触电阻 Contact resistance≤30m Ohm
→绝缘电阻 Insulation resistance≥7M Ohm
→基本介电强度 Dielectric strength of function500V
→增强介电强度 Dielectric strength of reinforced500V
→情况温度 Ambient temperature0°C~55°C
→阻燃品级 FlammabilityUL 94V-0
→防护品级 Protection typeIP40
◆开关内部电子部分在相应使用中一并做过相关测试，本开关适合做二类器具开关使用.
◆The electronics in the switches had to be tested together with the corresponding appliances, so the switches are suitable for appliance of class II.
端子类型Terminals
◆信号输入端/输出端 Input side/Output side for signal:
→线路板焊接端子 PCB Solder terminal 1.0×0.6mm
◆机械刹车端子 Terminal for Mechanical Brake:
→焊接端子 Soldering terminal 4.8×0.8mm
电气参数和认证 Electric Rating and Certification
