DSD-A0-X5

DSD防尘直流信号开关

DSD series Dustproof DC Trigger Switches

产品描述Product description

◆DSD系列是一款迷你型的直流信号开关 ，集成防尘功效 ，是特别为直流无刷充电式电动工具设计的 ，可适用于没有换向要求的直流无刷电动工具：无刷充电式曲线锯、无刷充电式往复锯等。
◆DSD series are one Mini-type DC signal switches, integrated dustproof, designed specially for used in Brushless DC power-tools without reversing such as: Brushless Cordless Jig saws,?Brushless Cordless Reciprocating Saws, etc.

产品特征Features

◆可选带以下功效或附件：
→信号通断带电位器输出功效
→信号刹车
◆Optional with the function or accessories as follows:
→Signal On-off version with linear potentiometer Signal Brake

技术数据Technical data

→机械耐久寿命 Mechanical life endurance≥1E5
→电气耐久寿命 Electrical life endurance≥5E4
→最大电流 Max.current at 130Vd.c0.1A
→接触电阻 Contact resistance≤30m Ohm
→绝缘电阻 Insulation resistance≥7M Ohm
→基本介电强度 Dielectric strength of function500V
→增强介电强度 Dielectric strength of reinforced500V
→情况温度 Ambient temperature0°C~55°C
→阻燃品级 FlammabilityUL 94V-0
→防护品级 Protection typeIP40

◆开关内部电子部分在相应使用中一并做过相关测试, 本开关适合做二类器具开关使用.

◆The electronics in the switches had to be tested together with the corresponding appliances, so the switches are suitable for appliance of class II.

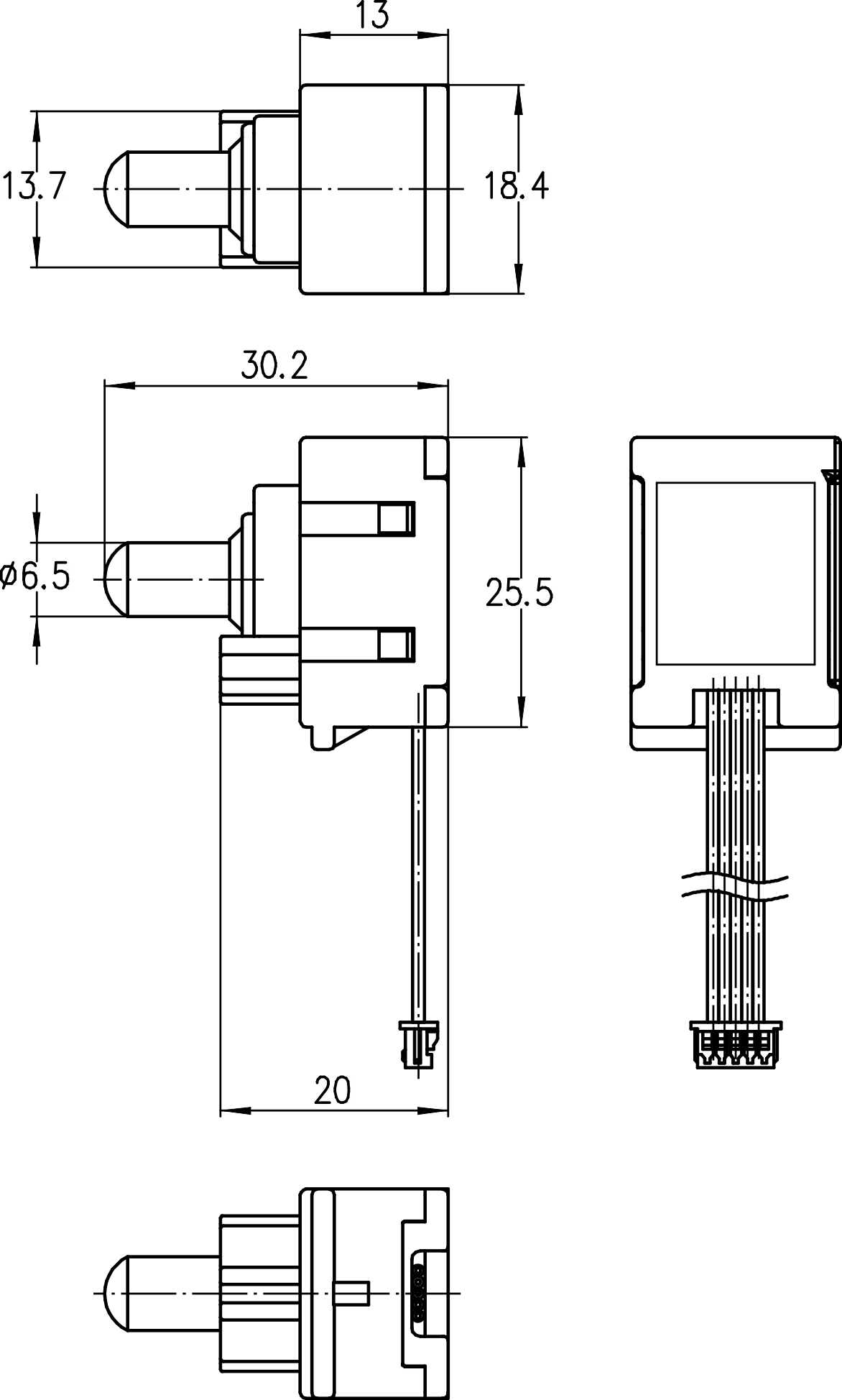

端子类型Terminals

◆输入端/输 出端 Input side/Output side:
→导线端子 Wire terminal
→带插头导线端子 Wire terminal with Plug
★本产品荣获外观设计专利 ，ZL202230756713.6
★Industrial Design patented with the no. is ZL202230756713.6

电气参数和认证 Electric Rating and Certification

订货信息Ordering Information
