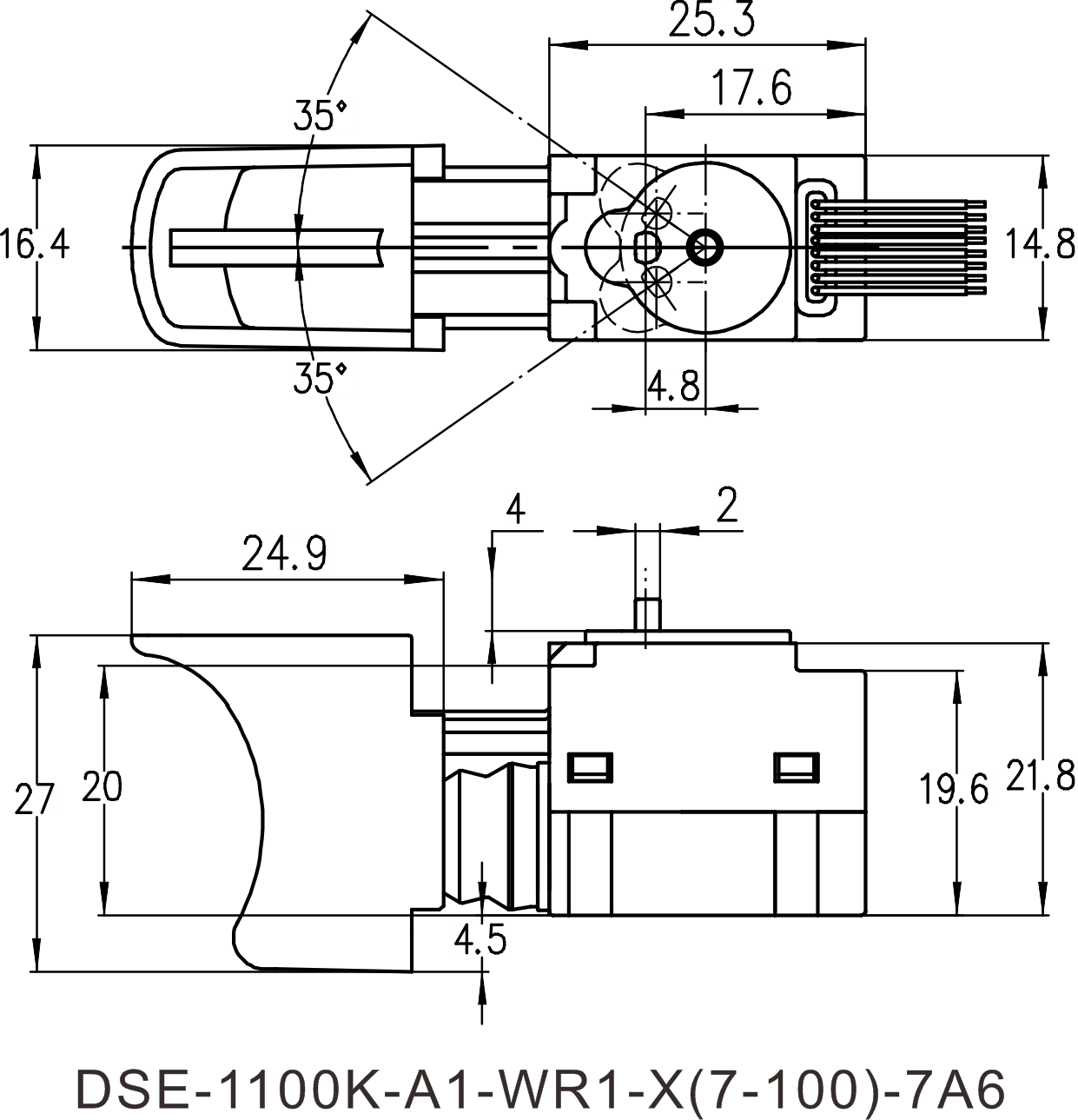

DSE-A1-WR1

DSE防尘直流信号扳机开关

DSE series Dustproof DC Signal Trigger Switches

产品描述Product description

◆DSE系列是一款专用型的直流信号扳机开关，集成防尘功效，是特别为直流无刷充电式电动工具设计的，可适用于：无刷充电式电钻、无刷充电式电锤、无刷充电式螺丝起子、无刷充电式攻击扳手等 。
◆DSE series are one special type DC signal trigger switches, integrated dustproof, designed specially for used in Brushless DC power-tools such as: Brushless Cordless Drills, Brushless Cordless Screw Drivers, Brushless Cordless Impact Wrenches,etc.

产品特征Features

◆可选带以下功效或附件：
→信号通断带电位器输出功效
→信号通断带正反转信号输出和电位器输出功效
→信号刹车
→带软胶扳机
◆Optional with the function or accessories as follows:
→Signal On-off version with linear potentiometer
→Signal On-off version with Reversing and linear potentiometer
→Signal Brake
→Trigger covered with rubber (overmolding)

技术数据Technical data

→机械耐久寿命 Mechanical life endurance≥5E4
→电气耐久寿命 Electrical life endurance≥1E4
→最大电流 Max. current at 42Vd.c 0.1A
→接触电阻 Contact resistance ≤30m Ohm
→绝缘电阻 Insulation resistance≥7M Ohm
→基本介电强度 Dielectric strength of function500V
→增强介电强度 Dielectric strength of reinforced500V
→情况温度 Ambient temperature0°C~55°C
→阻燃品级 FlammabilityUL 94V-0
→防护品级 Protection typeIP40

◆开关内部电子部分在相应使用中--并做过相关测试,本开关适合做二类器具开关使用.

◆The electronics in the switches had to be tested together with the corresponding appliances, so the switches are suitable for appliance of class II.

端子类型Terminals

◆输入端/输出端 Input side/Output side:
→导线端子 Wire terminal
→带插头导线端子 Wire terminal with Plug
★本产品荣获实用新型专利，专利号：ZL202122394665.3
★Utility Model patented with the no. is ZL202122394665.3

电气参数和认证 Electric Rating and Certification

订货信息Ordering Information
