产品描述Product description
◆FA7-6F系列是一款专用型的按钮开关，应用于种种台式电动工具和家用电器，如：台锯、台式砂轮机、台式砂带机、真空吸尘器、干湿两用吸尘器、高压清洗机等。
◆FA7-6F series are special type push-button switch, commonly for used in bench-top power-tools and home appliances such as Table Saws, Bench Grinders, Belt Sanders, Vacuum Cleaners, Day and Wet Vacuum Cleaners, Electric High Pressure Washers,etc.
产品特征Features
◆可选带以下功效 Optional with following function:
→双极�？� DPNO
→双极�？运� DPNO with latching

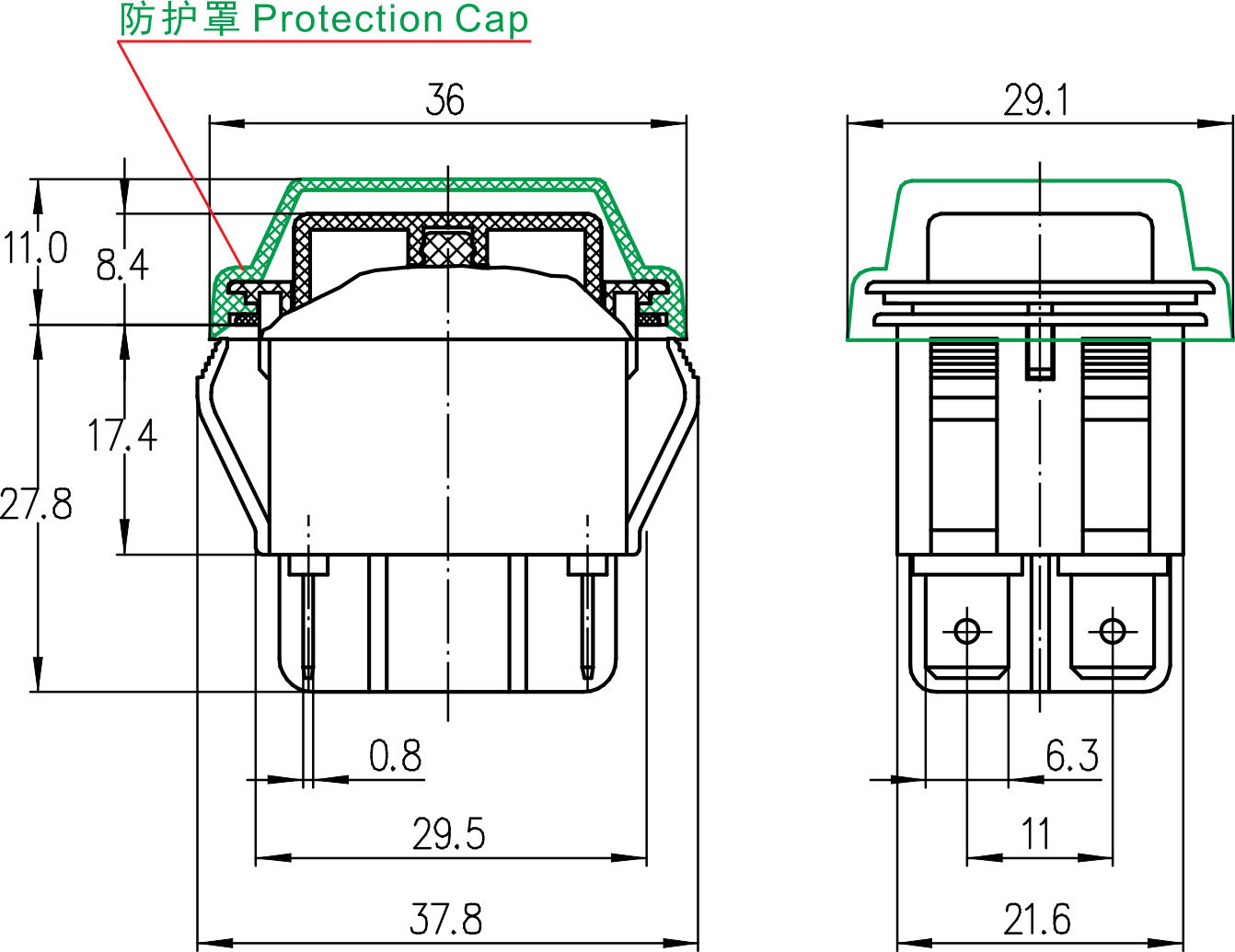

→带防护罩→带防护罩可实现防尘防水功效（和器具装置后）
→Optional with Protection Cap for dustproof and waterproof (After installed with the appliances)
技术数据Technical data
→机械耐久寿命 Mechanical life endurance≥1E5
→电气耐久寿命 Electrical life endurance≥5E4
→最大攻击电流 Max. Inrush current at 250V84A
→接触电阻 Contact resistance≤30m Ohm
→绝缘电阻 Insulation resistance≥7M Ohm
→基本介电强度 Dielectric strength of function1500V
→增强介电强度 Dielectric strength of reinforced3000V
→情况温度 Ambient temperature0°C~85°C
→操动件温度 Actuator temperature0°C~55C
→阻燃品级 FlammabilityUL 94V-0
→防护品级 Protection typeIP40
→适用于II类防护器具 Suitable for appliances of protection class II
端子类型Terminals
◆输入端/输出端 Input side/Output side:
→插片端子 Plug-in terminals 6.3×0.8mm
→插片端子 Plug-in terminals 4.8×0.8mm
→焊接端子 Solder terminals
→线路板焊接端子 PCB Solder terminals
电气参数和认证 Electric Rating and Certification
