FA7-6H-2L10B

FA7-6H按钮开关

FA7-6H series Push-button Switches

产品描述Product description

◆FA7-6H系列是一款专用型的按钮开关，应用于种种家用电器和园林工具，如：真空吸尘器、充电灯、挂烫机、打草机等。
◆FA7-6H?series are special type push-button switch, commonly for used in home appliances or gardening tools such as Vacuum Cleaners, Chargeable Lights, Grass Trimmers, etc.

产品特征Features

◆可选带以下功效 Optional with following function:
→单极�？� SPNO
→双极�？� DPNO
→单极�？运� SPNO with latching
→双极�？运� DPNO with latching
→带防护罩→带防护罩可实现防尘防水功效（和器具装置后）
→Optional with Protection Cap for?dustproof?and?waterproof?(After installed with the appliances)

技术数据Technical data

→机械耐久寿命 Mechanical life endurance≥1E5
→电气耐久寿命 Electrical life endurance≥5E4
→最大攻击电流 Max. Inrush current at 250V48A
→最大攻击电流 Max. Inrush current at 125V48A
→接触电阻 Contact resistance≤30m Ohm
→绝缘电阻 Insulation resistance≥7M Ohm
→基本介电强度 Dielectric strength of function1500V
→增强介电强度 Dielectric strength of reinforced3000V
→情况温度 Ambient temperature0°C~105°C
→阻燃品级 FlammabilityUL 94V-0
→防护品级 Protection typeIP40
→适用于II类防护器具 Suitable for appliances of protection class II

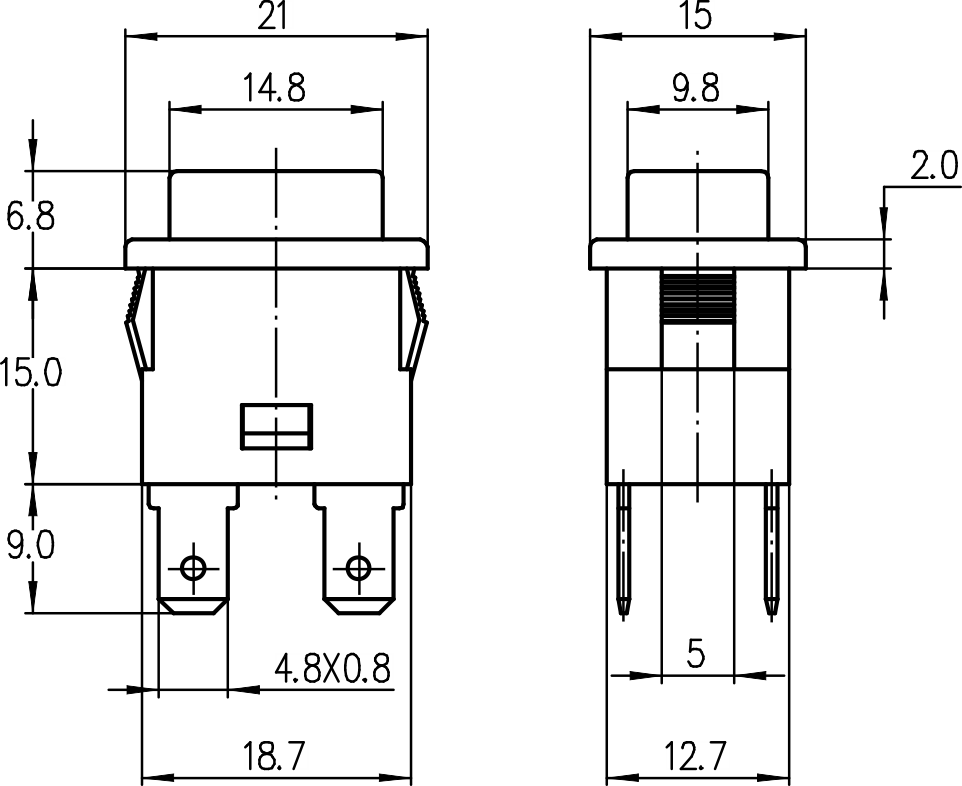

端子类型Terminals

◆输入端/输出端 Input side/Output side:
→插片端子 Plug-in terminals 6.3×0.8mm
→插片端子 Plug-in terminals 4.8×0.8mm
→焊接端子 Soldering terminals 3.0×0.8mm
→线路板焊接端子 PCB Soldering terminals 2×0.8mm
→线路板焊接端子 PCB Soldering terminals 1.1×0.8mm

电气参数和认证 Electric Rating and Certification

订货信息Ordering Information
