产品描述Product description
◆FDA系列是一款专用型的倒扳开关，也叫摇杆开关或拨动开关，集成防尘功效，应用于种种电动工具，如：100和125角向磨光机、电木铣、模具电磨、电锤、电镐等。
◆FDA series are one special type Lever switches, integrated dustproof, commonly for used in power-tools such as 100mm and 125mm Angle Grinders, Routers, Die Grinders, Rotary Hammers,Demolition Hammers, etc.
产品特征Features
◆可选带以下附件 Optional with following accessories:

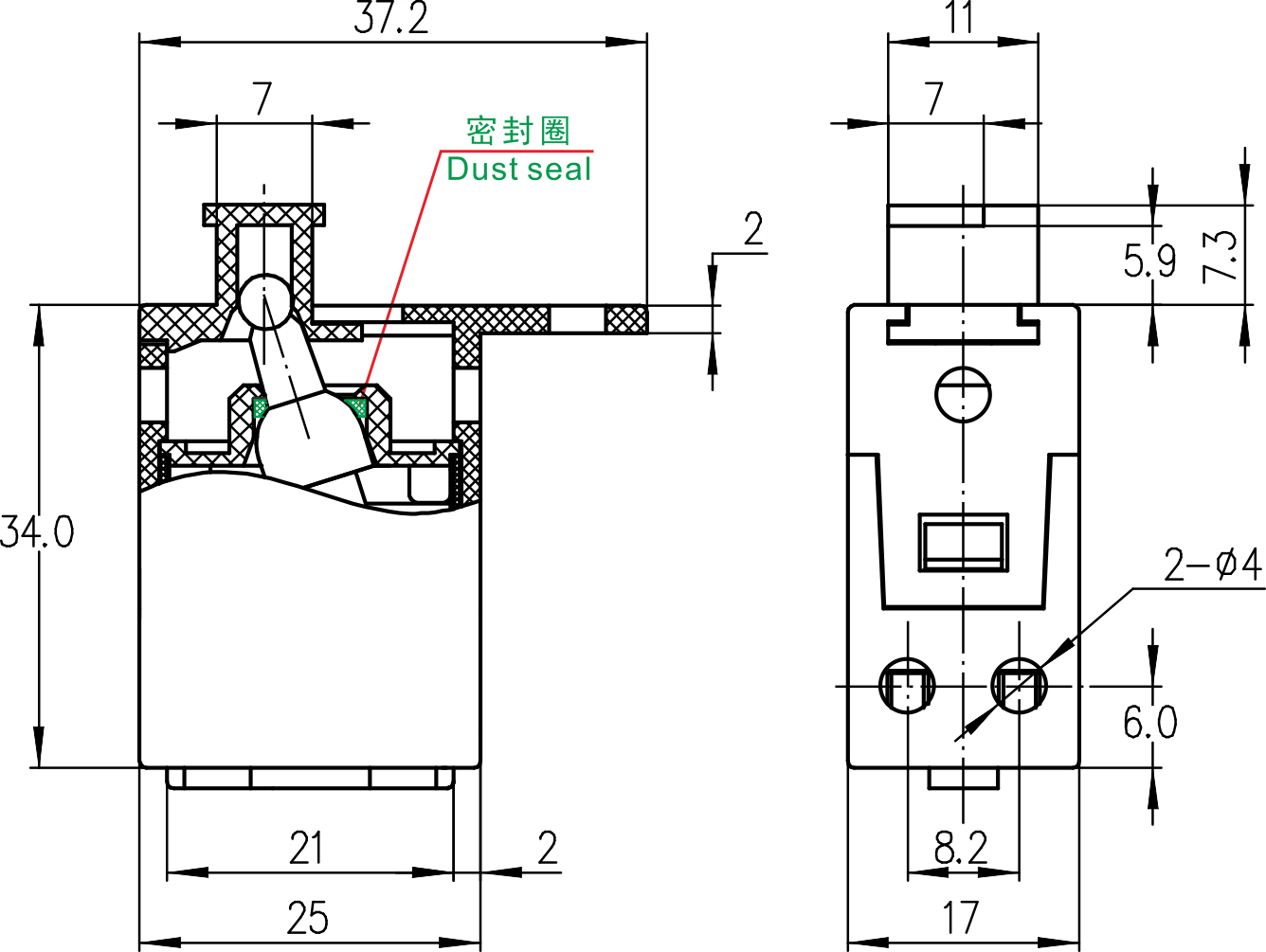

→防尘套 Dustproof sheath
→装置螺母 Nut for installation
技术数据Technical data
→机械耐久寿命 Mechanical life endurance≥1E5
→电气耐久寿命 Electrical life endurance≥5E4
→最大攻击电流 Max. Inrush current at 250V60A
→最大攻击电流 Max. Inrush current at 127V96A
→接触电阻 Contact resistance≤30m Ohm
→绝缘电阻 Insulation resistance≥7M Ohm
→基本介电强度 Dielectric strength of function1500V
→增强介电强度 Dielectric strength of reinforced3000V
→情况温度 Ambient temperature0°C~55°C
→阻燃品级 FlammabilityUL 94V-0
→防护品级 Protection typeIP40
→适用于II类防护器具 Suitable for appliances of protection class II
端子类型Terminals
◆输入端/输出端 Input side/Output side:
→接线柱端子 Pillar terminals φ=3mm
电气参数和认证 Electric Rating and Certification
