产品描述Product description
◆FDF系列是一款通用型的滑动开关，也叫推拉开关或推拨开关，广泛应用于种种需要档位控制的电动工具和小家电，如：热风枪、吹吸机、电吹风、电电扇、取暖器、料理机等。
◆FDF series are general type slide switches, commonly for used in power-tools and small home appliances such as Heat Guns, Blowers, Hair Dryers, Electric Fans, Electric Heating Apparatus, Cooking Machines, etc.
产品特征Features
◆可选带以下功效 Optional with following function:
→双极2档位 Double Pole 2 Position (DP2P)
→双极3档位 Double Pole 3 Position (DP3P)
→双极4档位 Double Pole 4 Position (DP4P)
→双极5档位 Double Pole 5 Position (DP5P)
技术数据Technical data
→机械耐久寿命 Mechanical life endurance≥5E4
→电气耐久寿命Electrical life endurance≥1E4
→最大电流 Max. current at 250V10A
→最大电流 Max. current at 125V16A
→接触电阻 Contact resistance≤30m Ohm
→绝缘电阻 Insulation resistance≥7M Ohm
→基本介电强度 Dielectric strength of function1500V
→增强介电强度 Dielectric strength of reinforced3000V
→情况温度 Ambient temperature0°C~85°C
→阻燃品级 FlammabilityUL 94V-0
→防护品级 Protection typeIP40
→适用于II类防护器具 Suitable for appliances of protection class II

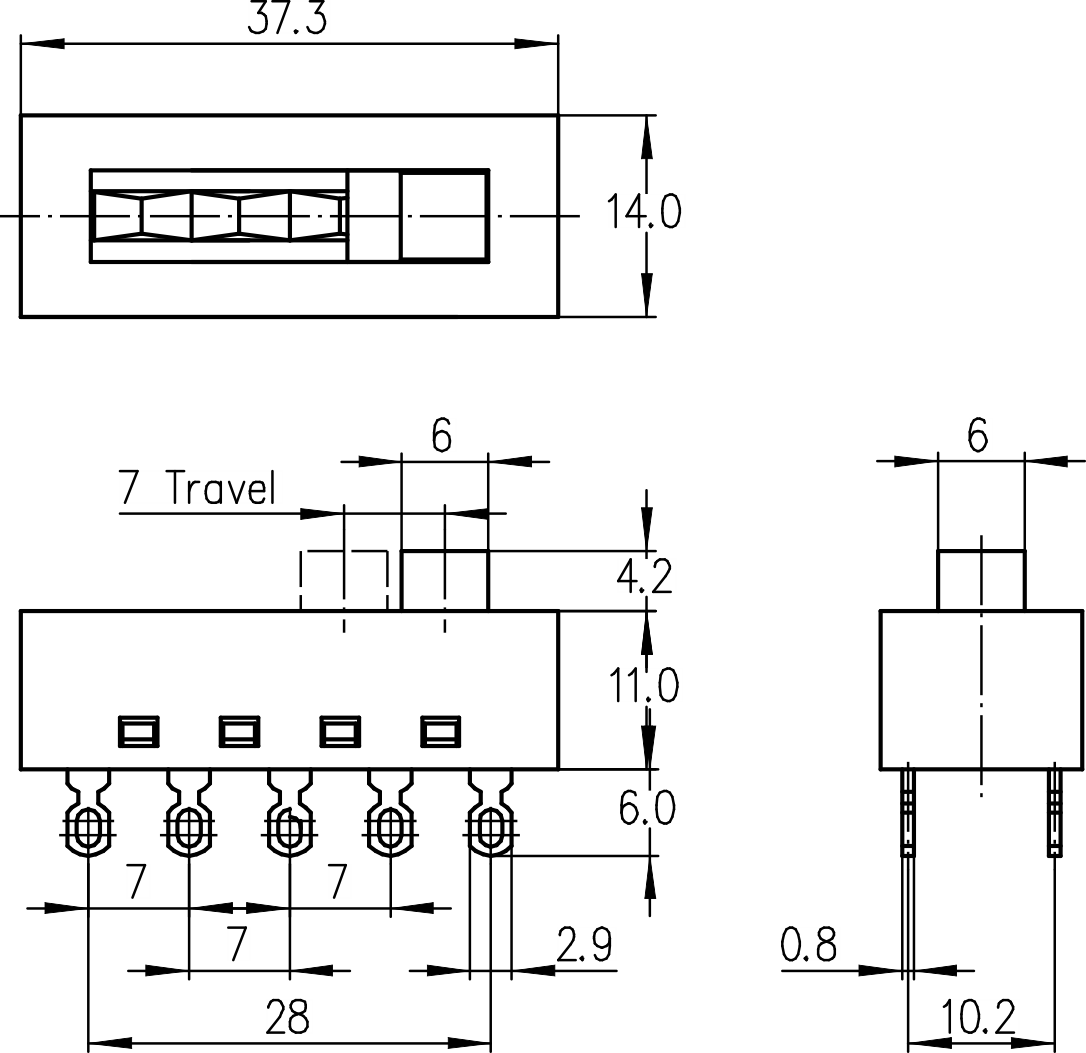

端子类型Terminals
◆输入端/输出端 Input side/Output side:
→焊接端子 Soldering terminals 2.9×0.8mm
→线路板焊接端子 PCB Soldering terminals 0.8×0.8mm
→插片端子 Plug-in terminals 2.8×0.8mm
→焊接端子 Soldering terminals 2.8×0.8mm
电气参数和认证 Electric Rating and Certification
