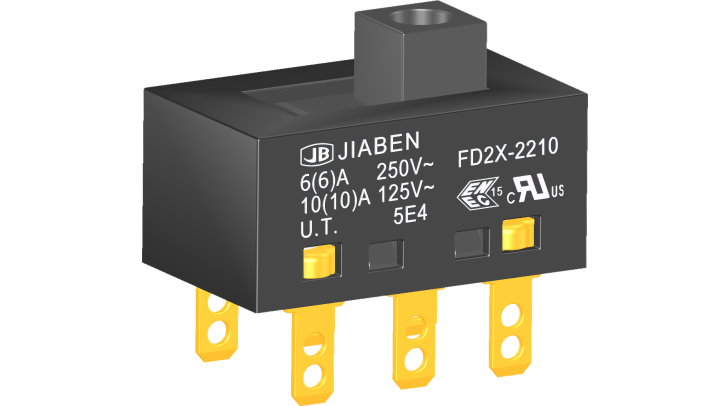

产品描述Product description
◆FD2X系列是一款通用型的滑动开关 ，也叫推拉开关或推拨开关 ，应用于种种需要档位控制的电动工具 ，如：吹吸机、多功效锯、打草机等。
◆FD2X series are general type slide switches, commonly for used in power-tools such as Blowers, Multi-function Saws, Grass Trimmers, etc.
产品特征Features
◆内部为跷板结构 ，使用寿命可达5万次
◆With rocker structure, the endurance life can be 50,000 cycles
技术数据Technical data
→机械耐久寿命 Mechanical life endurance≥1E5
→电气耐久寿命 Electrical life endurance≥5E4
→最大攻击电流 Max. Inrush current at 250V36A
→最大攻击电流 Max. Inrush current at 125V60A
→接触电阻 Contact resistance≤30m Ohm
→绝缘电阻 Insulation resistance≥7M Ohm
→基本介电强度 Dielectric strength of function1500V
→增强介电强度 Dielectric strength of reinforced3000V
→情况温度 Ambient temperature0°C~ 55°C
→阻燃品级 FlammabilityUL 94V-0
→防护品级 Protection typeIP40
→适用于II类防护器具 Suitable for appliance s of protection class II

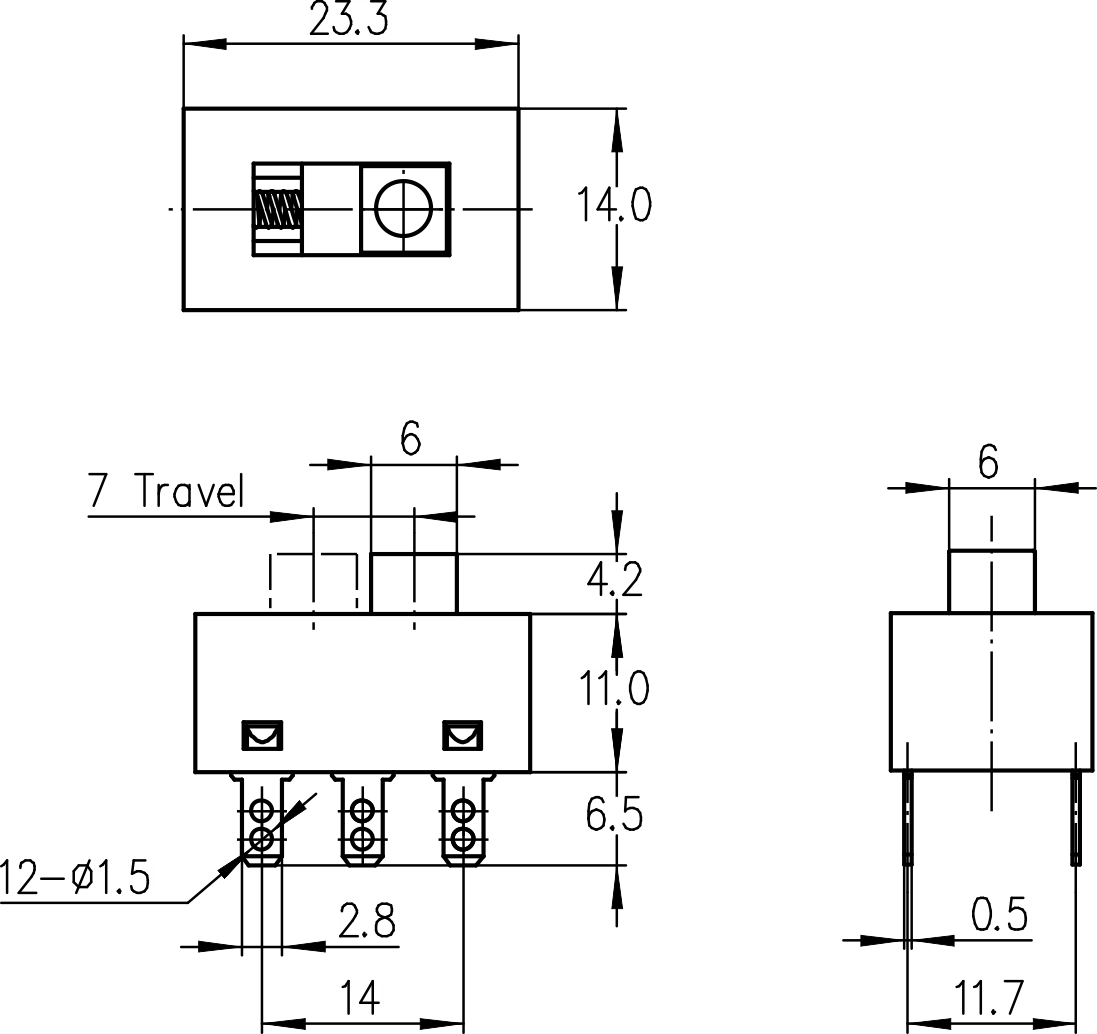

端子类型Terminals
◆输入端/输出端 Input side/Output side:
→焊接端子Soldering terminals 2.8×0.5mm
→线路板焊接端子PCB Soldering terminals 2.8×0.5mm
电气参数和认证 Electric Rating and Certification
