产品描述Product description
◆FDPX系列是一款通用型的滑动开关 ，也叫推拉开关或推拨开关 ，内部为瞬间行动结构 ，应用于种种手持电动工具 ，如：100和125角磨机、多功效工具等。
◆FDPX series are general type slide switches, with snap-action structure, commonly for used in power-tools such as 100mm and 125mm Angle Grinders, Multi-function Tools, etc.
产品特征Features
◆可选带以下功效 Optional with the following function:
→单极单掷 SPST (Single Pole Single Throw)
→单极双掷 SPDT (Single Pole Double Throw)
技术数据Technical data
→机械耐久寿命 Mechanical life endurance≥1E5
→电气耐久寿命 Electrical life endurance≥5E4
→最大攻击电流 Max. Inrush current at 250V72A
→最大攻击电流 Max. Inrush current at 127V108A
→接触电阻 Contact resistance≤30m Ohm
→绝缘电阻 Insulation resistance≥7M Ohm
→基本介电强度 Dielectric strength of function1500V
→增强介电强度 Diele ctric strength of reinforced3000V
→情况温度 Ambient temperature0°C~55°C
→阻燃品级 FlammabilityUL 94V-0
→防护品级 Protection typeIP40
→适用于II类防护器具 Suitable for appliances of protection class II

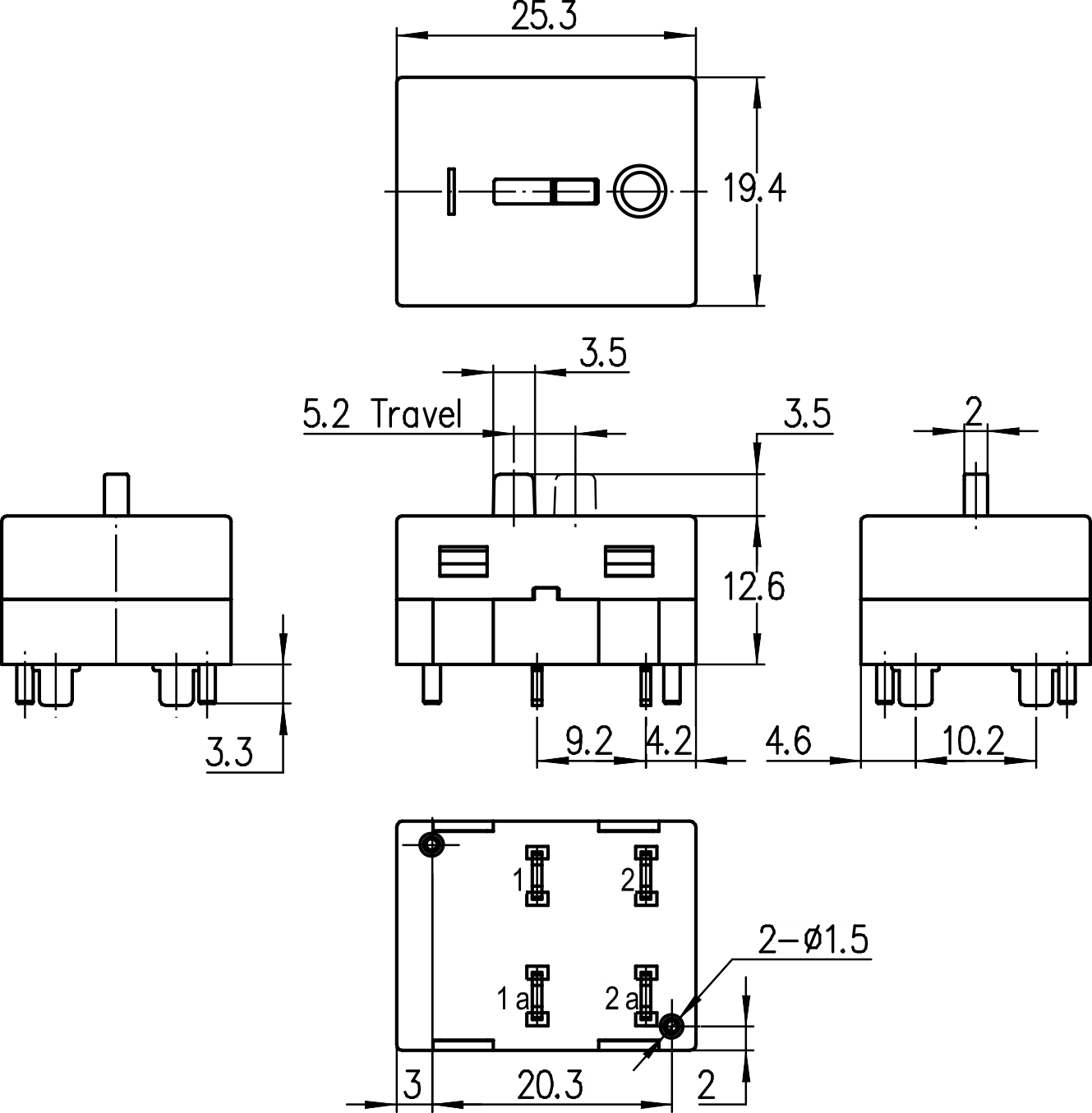

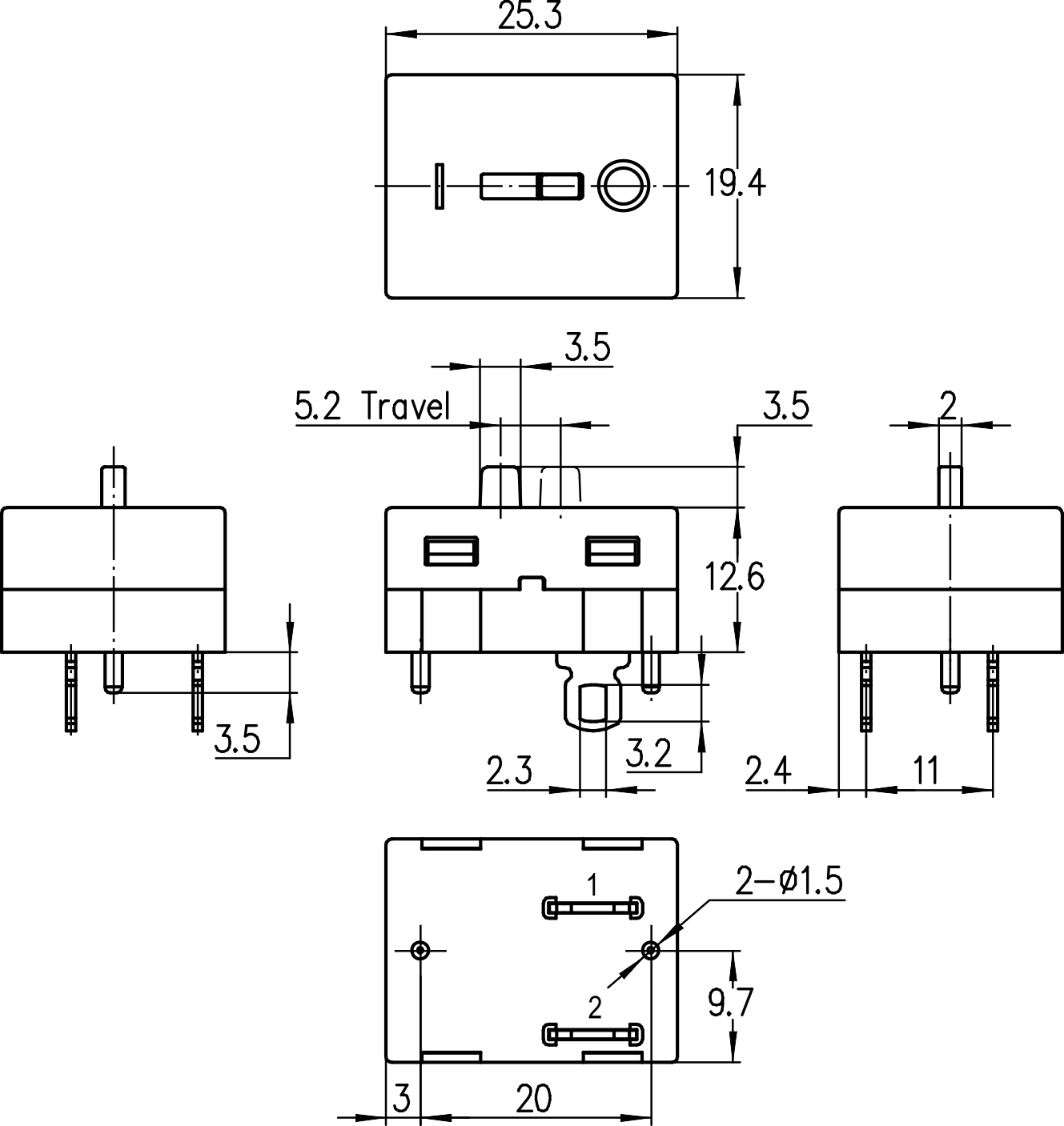

端子类型Terminals
◆输入端/输出端 Input side/Output side:
→焊接端子 Soldering terminals 3.0×0.8mm
→线路板焊接端子 PCB Soldering terminals 2.6×0.8mm
→线路板焊接端子 PCB Soldering terminals 1.0×0.8mm
★本产品荣获实用新型专利 ，专利号：ZL202021714438.3
★Utility Model patented with the no. is ZL202021714438.3
电气参数和认证 Electric Rating and Certification
