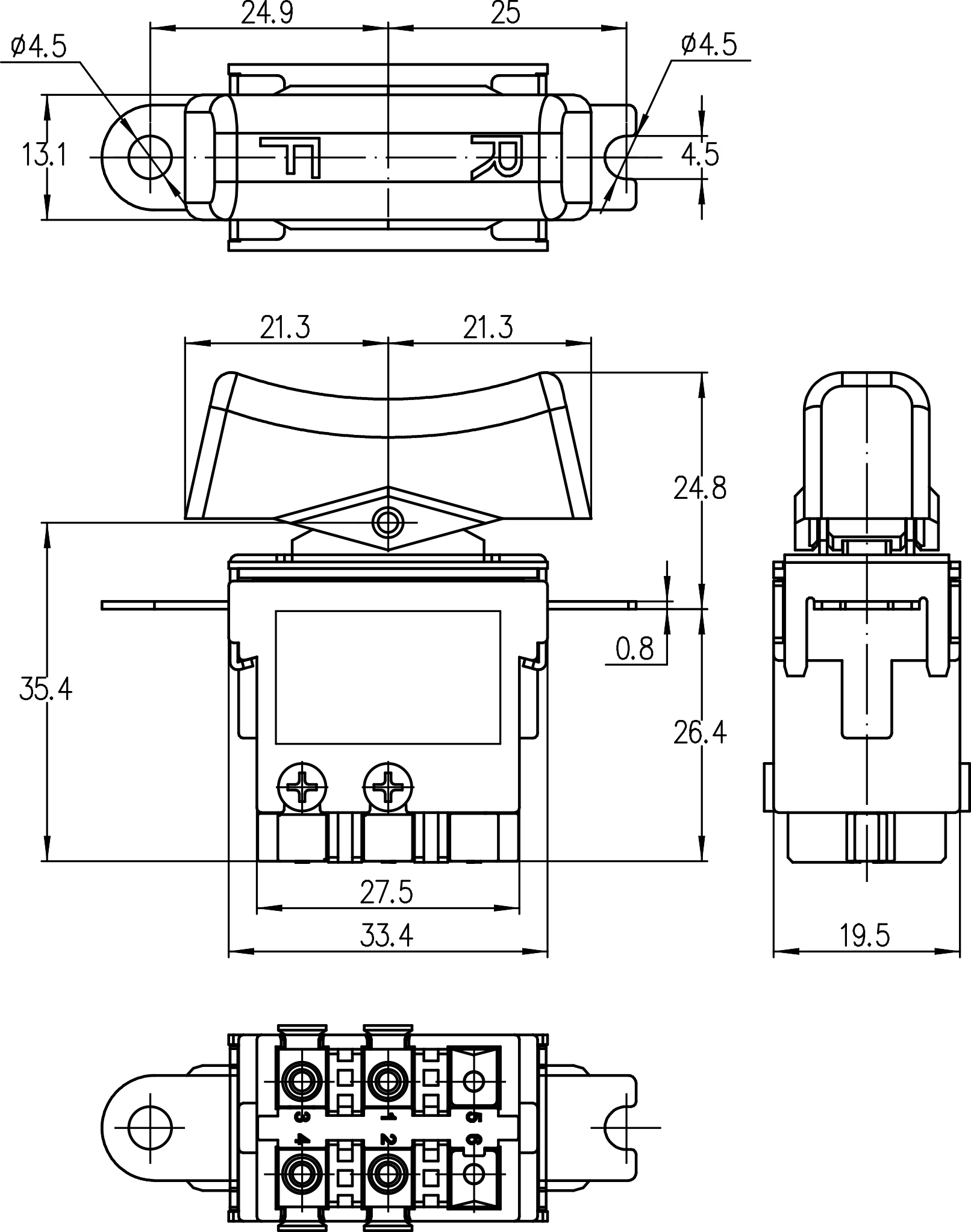

FD2-8GX-23M08P-B10

FD2-8GX-P(防尘)正反转倒扳开关

FD2-8GX-P series (Dustproof) Change-over Lever Switches

产品描述Product description

◆FD2-8GX系列是一款专用型的倒扳开关 ，也叫摇杆开关或拨动开关 ，应用于种种手持式电动工具 ，如：电动攻击扳手、电动搅拌器、电动葫芦等。
◆FD2-8GX series are special type Lever switches, also named Toggle switch, commonly for used in portable power-tools such as Electric Wrenches, Electric Mixers, Electric Winches, etc.

产品特征Features

◆可选带以下功效 Optional with following function:
→双极单掷 DPST (Double Pole Single Throw)
→双极双掷 DPDT (Double Pole Double Throw)

→双极双掷带中间断开 DPDT with center off

→点动方法 Momentary act

技术数据Technical data

→机械耐久寿命 Mechanical life endurance≥5E4/1E5
→电气耐久寿命 Electrical life endurance≥1E4/5E4
→最大攻击电流 Max. Inrush current at 250V60A
→接触电阻 Contact resistance≤30m Ohm
→绝缘电阻 Insulation resistance≥7M Ohm
→基本介电强度 Dielectric strength of function1500V
→增强介电强度 Diele ctric strength of reinforced3000V
→情况温度 Ambient temperature0°C~55°C
→阻燃品级 FlammabilityUL 94V-0
→防护品级 Protection type IP40
→适用于II类防护器具 Suitable for appliances of protection class II

端子类型Terminals

◆输入端/输出端 Input side/Output side:
→接线柱端子 Pillar terminals φ=3.5mm

电气参数和认证 Electric Rating and Certification

订货信息Ordering Information
